Works with standard SMB antenna ports
Compatible with Sirius, XM and SiriusXM receivers or docks that accept a standard push-on SMB antenna plug without a colored plastic FAKRA housing.
Built for commercial trucks
SiriusXM reception built for the highway

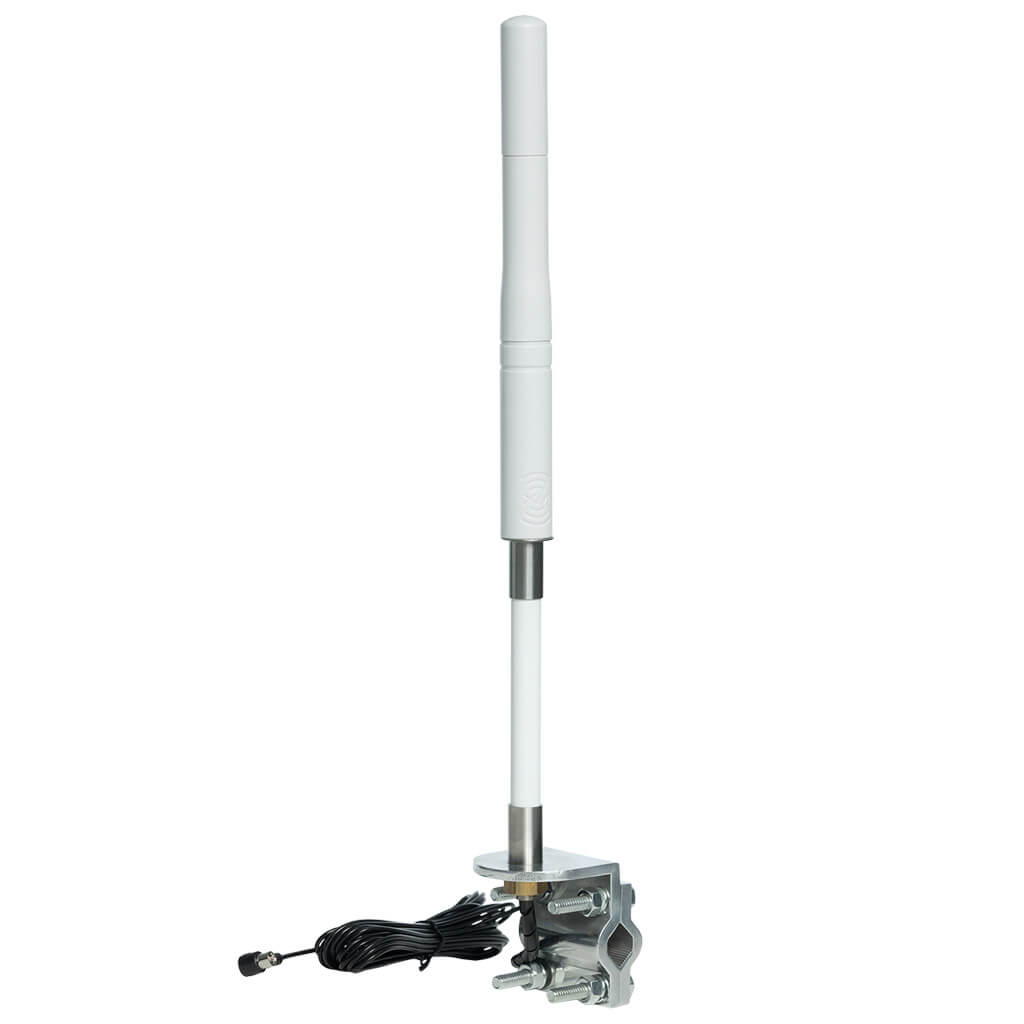

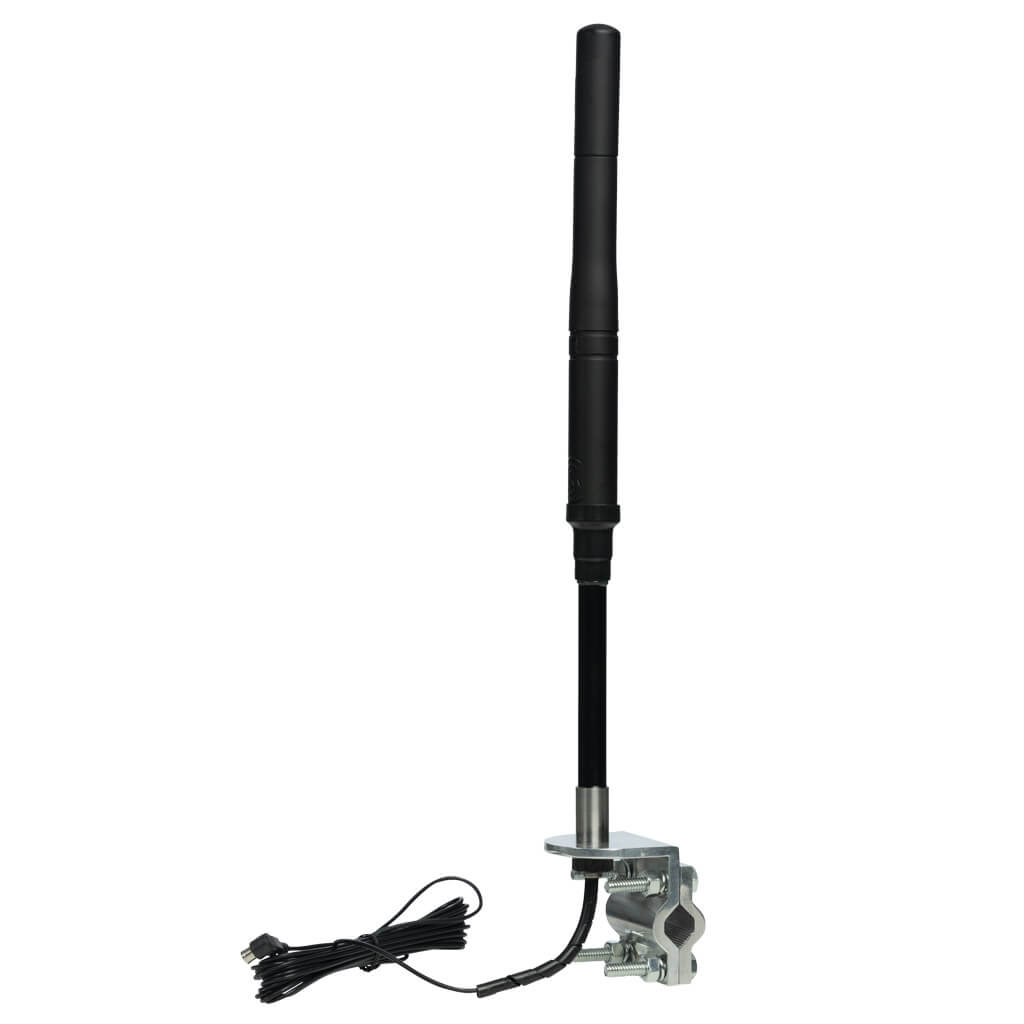

The SXMT16 is a SiriusXM-approved antenna designed for secure installation on a semi-truck mirror arm or support bar. Its reinforced mast, watertight housing and exterior mounting hardware are built for demanding road conditions.
An attached low-loss cable reaches from the exterior mounting point into the cab and terminates in a right-angle SMB connector for compatible Sirius, XM and SiriusXM radios and tuners.
16 inReinforced antenna mast
16 ftAttached low-loss cable
150 mphRated wind velocity
Compatibility
Check your antenna connection
Factory radios may require an adapter
Factory-installed systems that combine satellite radio with GPS or navigation through one antenna lead may require a vehicle-specific adapter.
Truck-ready design
Built for exterior installation
Commercial-truck construction, secure clamp mounting and an extended cable provide a dependable exterior antenna installation.
Reinforced mast
Strong 16-inch design for commercial trucks and demanding road conditions.
Watertight housing
UV-stable ASA construction is available in black or white.

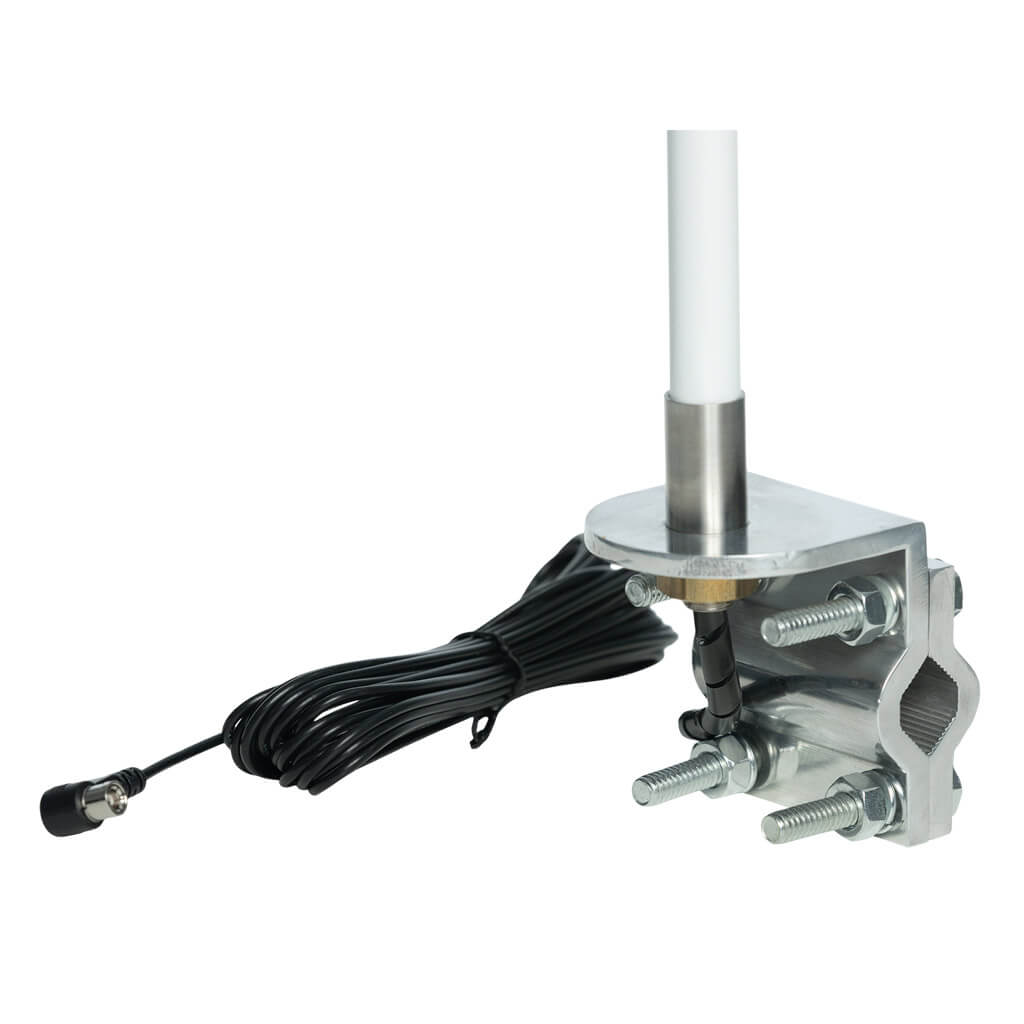

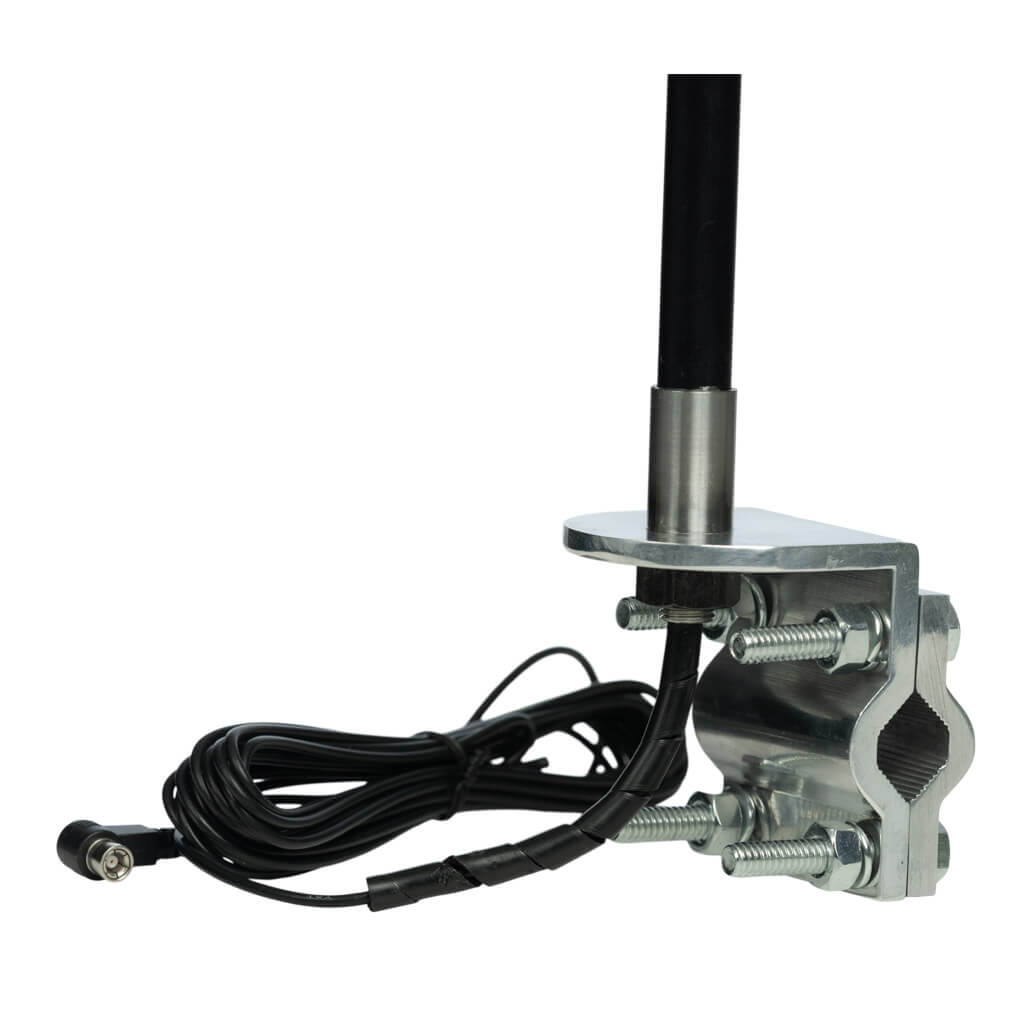

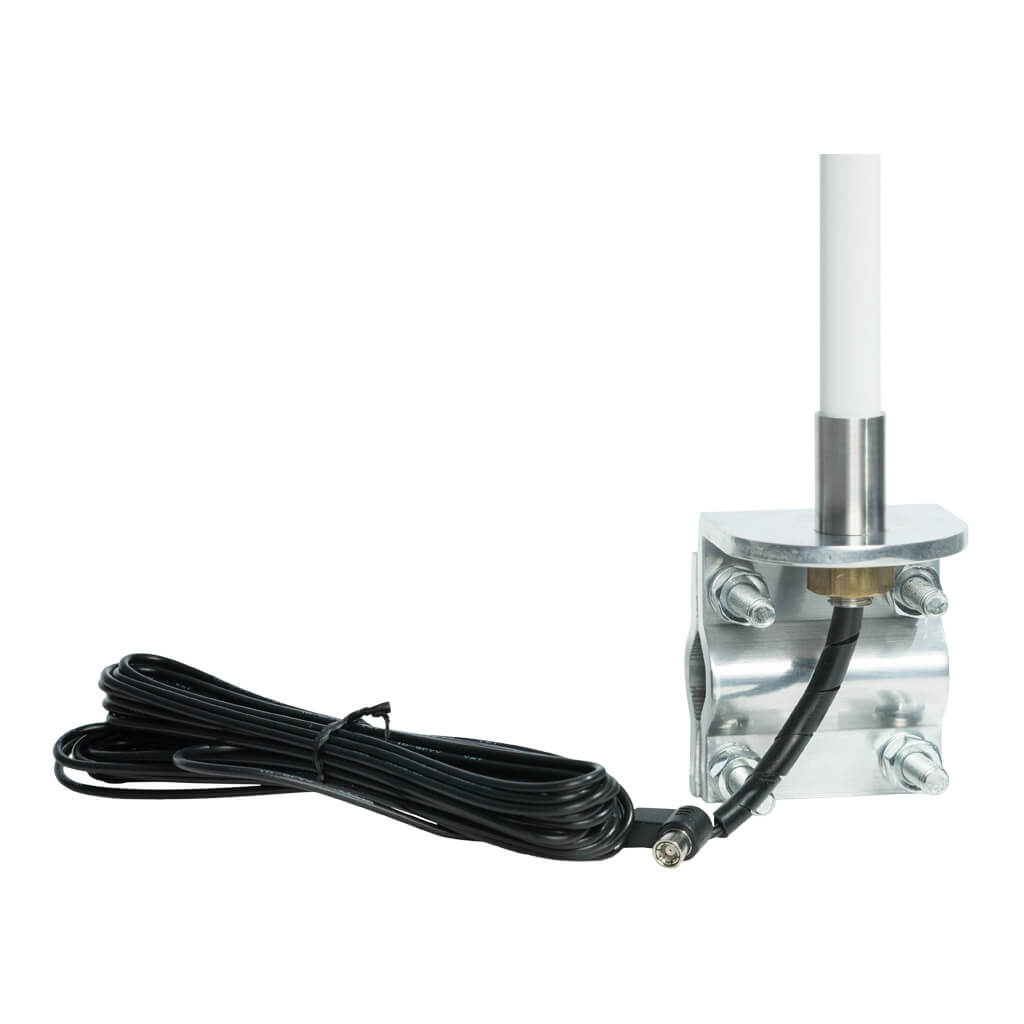

Clamp mounting
Installs securely on a compatible mirror arm or support bar.
Adjustable angle
The antenna base adjusts from 0–35 degrees for vertical alignment.

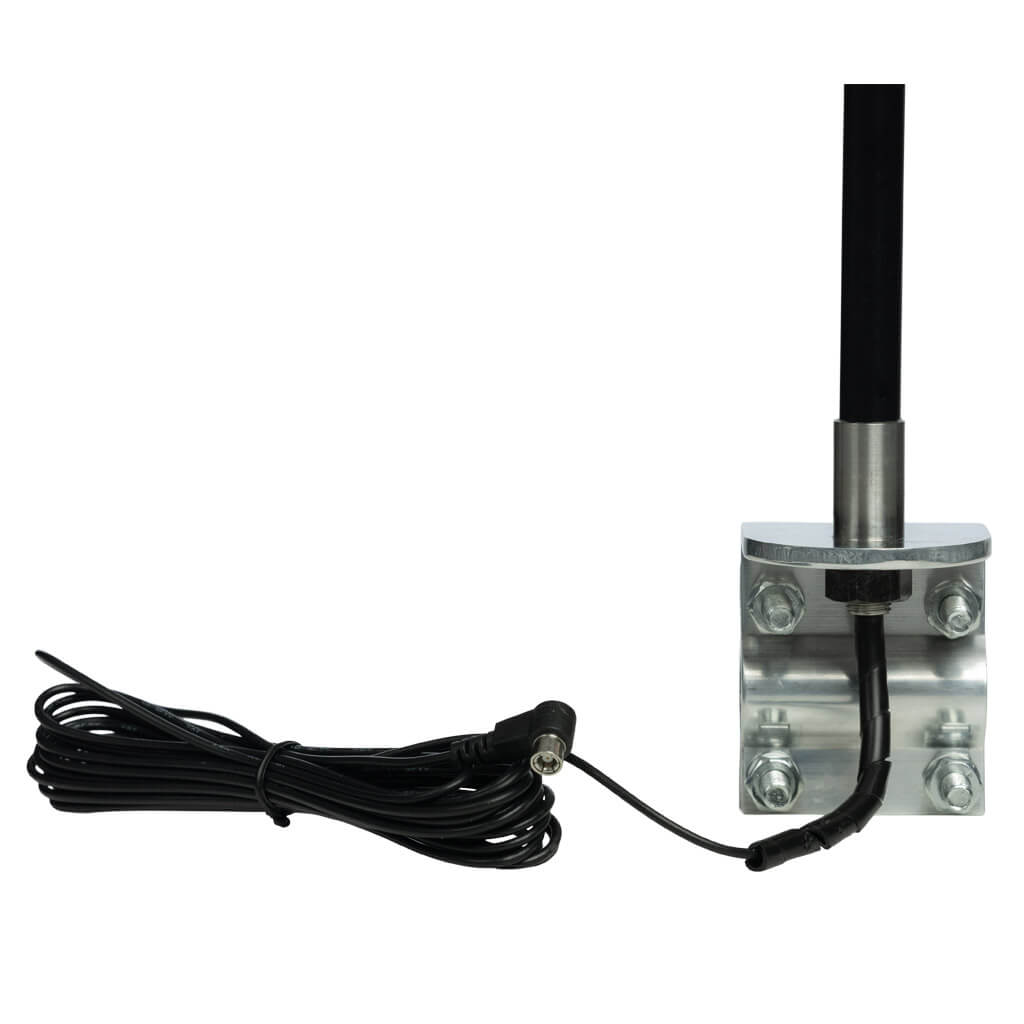

Low-loss cable
Attached 16-foot RG-174 cable reaches from the mirror into the cab.

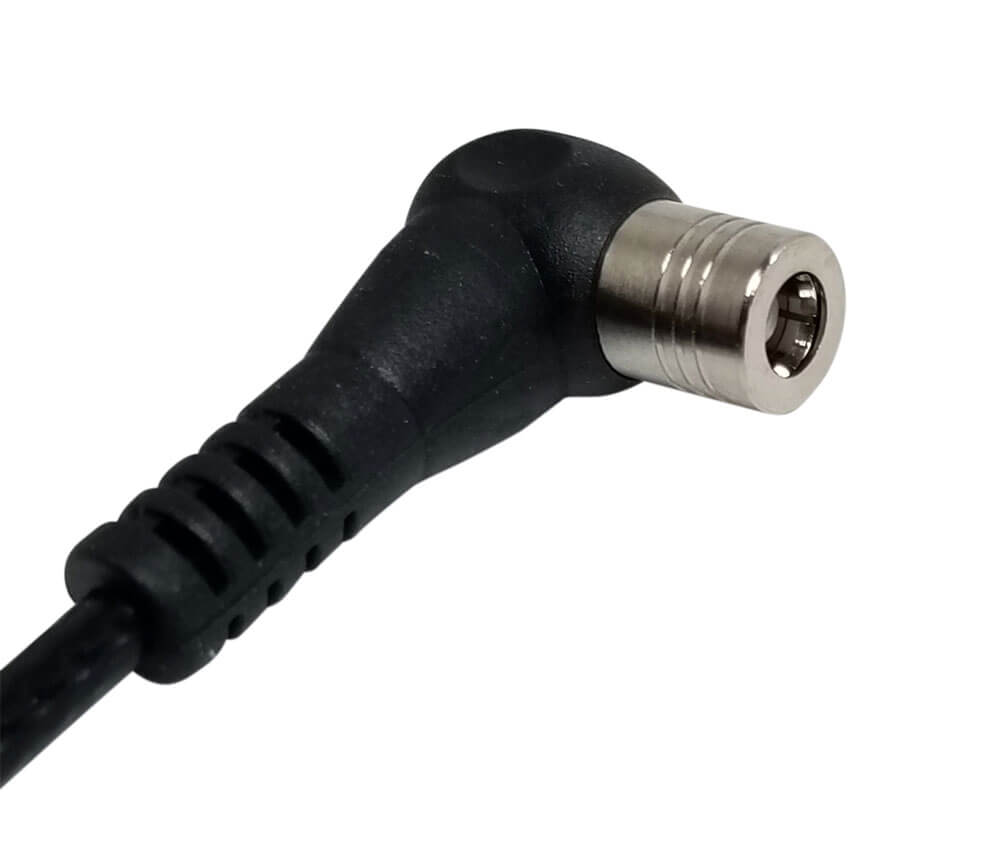

Right-angle SMB
Compact SMB female connector for compatible radios, docks and tuners.
Mounting and cable routing
A secure installation for your truck
Choose a clear mounting point
Use a stable mirror arm or support bar with an unobstructed view of the sky.
Secure and align the mast
Tighten the clamp hardware and adjust the base so the antenna remains upright.
Protect the cable route
Keep the attached cable away from sharp edges, moving components and pinch points.
Fitment details
Dimensions and connection
Compact mounting footprint
The antenna measures 16 inches tall with a 1-inch mast and 2.5-inch base.
Right-angle SMB connector
The attached cable terminates in an SMB female connection for compatible equipment.
Everything in the box
Package includes
SXMT16 16-inch semi-truck antenna
Attached 16-foot cable with right-angle SMB connector
Mirror-arm clamp and installation hardware
Product information
Technical specifications
Review the antenna dimensions, connection, signal performance and environmental ratings.
Product and dimensions
ModelSXMT16
ManufacturerPixel Technologies
Height16 in with mounting base
Mast / base width1 in / 2.5 in
WeightApproximately 10 oz with cable
Available colorsBlack or white
Cable and connection
Cable typeRG-174 coaxial
Cable length16 ft, attached
ConnectorSMB female, right angle
Impedance50 ohms
Power4.5 V DC nominal
Current drain60 mA maximum
Signal performance
Frequency2320–2345 MHz
Bandwidth12.5 MHz
Antenna gain2 dBic at 20–60° elevation
Amplifier gain30 dB typical
Noise figure1.0 dB maximum
Signal rejection40 dB minimum
Construction and environment
HousingUV-stable ASA
Mount angle0–35° adjustable
Wind rating150 mph
Operating temperature-40°C to +105°C
Storage temperature-45°C to +120°C
ConstructionWatertight
Trucker tip
Not sure which connector your truck needs?
Send us a clear photo of the antenna port or dash connector. Our team can help identify the correct antenna or vehicle-specific adapter before you order.
