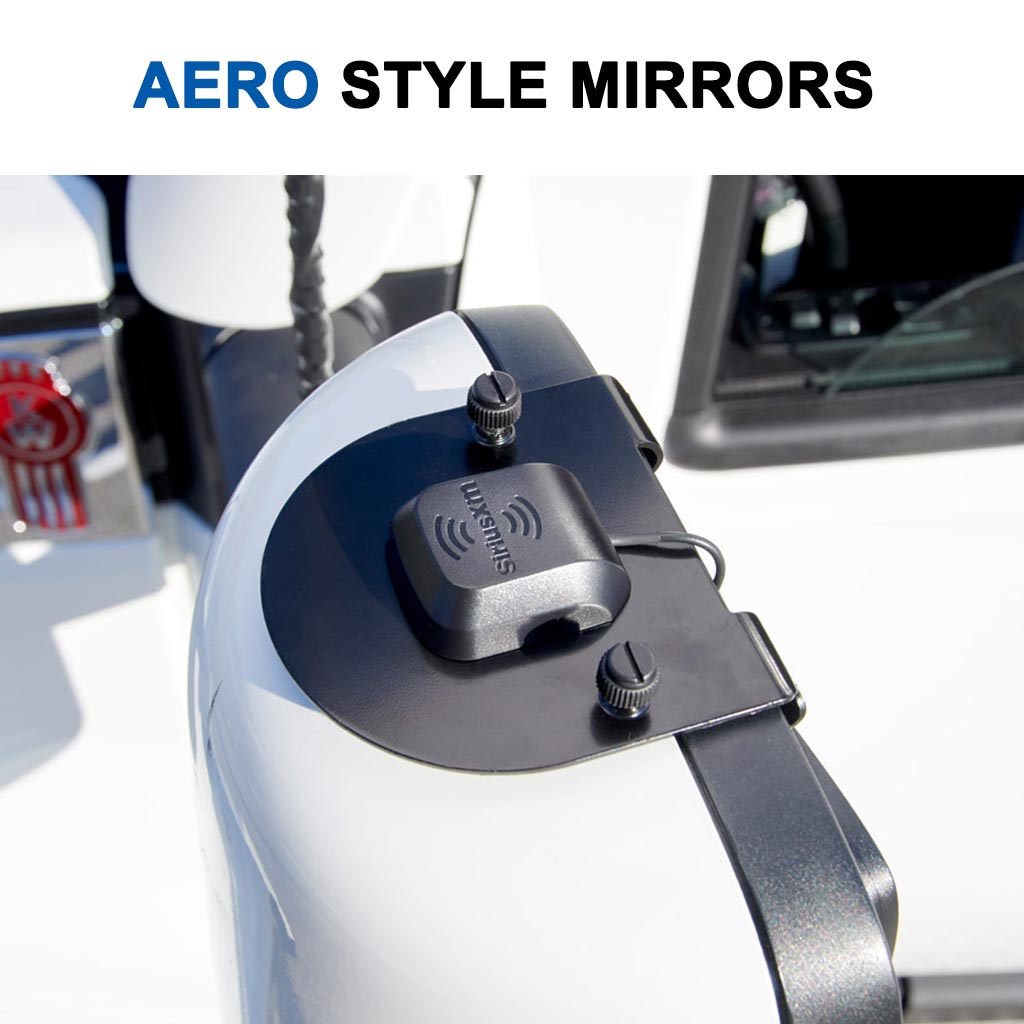

Aero-style mirrors
The upper plate and lower support bracket clamp around the mirror housing support to create a stable antenna platform.
Built for professional drivers
Mount your SiriusXM antenna outside the cab
This complete truck antenna mounting kit combines a universal mirror-mount bracket with the official SiriusXM NGVA3 magnetic antenna. The bracket works with all Aero-style and traditional West Coast-style truck mirrors, providing a secure exterior mounting location with a clear view of the sky.
Two mirror styles
Aero-style and traditional West Coast
23-foot cable
Extended reach for commercial truck installations
Standard SMB plug
Right-angle connection for compatible receivers
Universal truck antenna mount
Antenna mounting options for your truck
The adjustable bracket installs securely in minutes and includes the hardware needed for either supported mirror configuration.

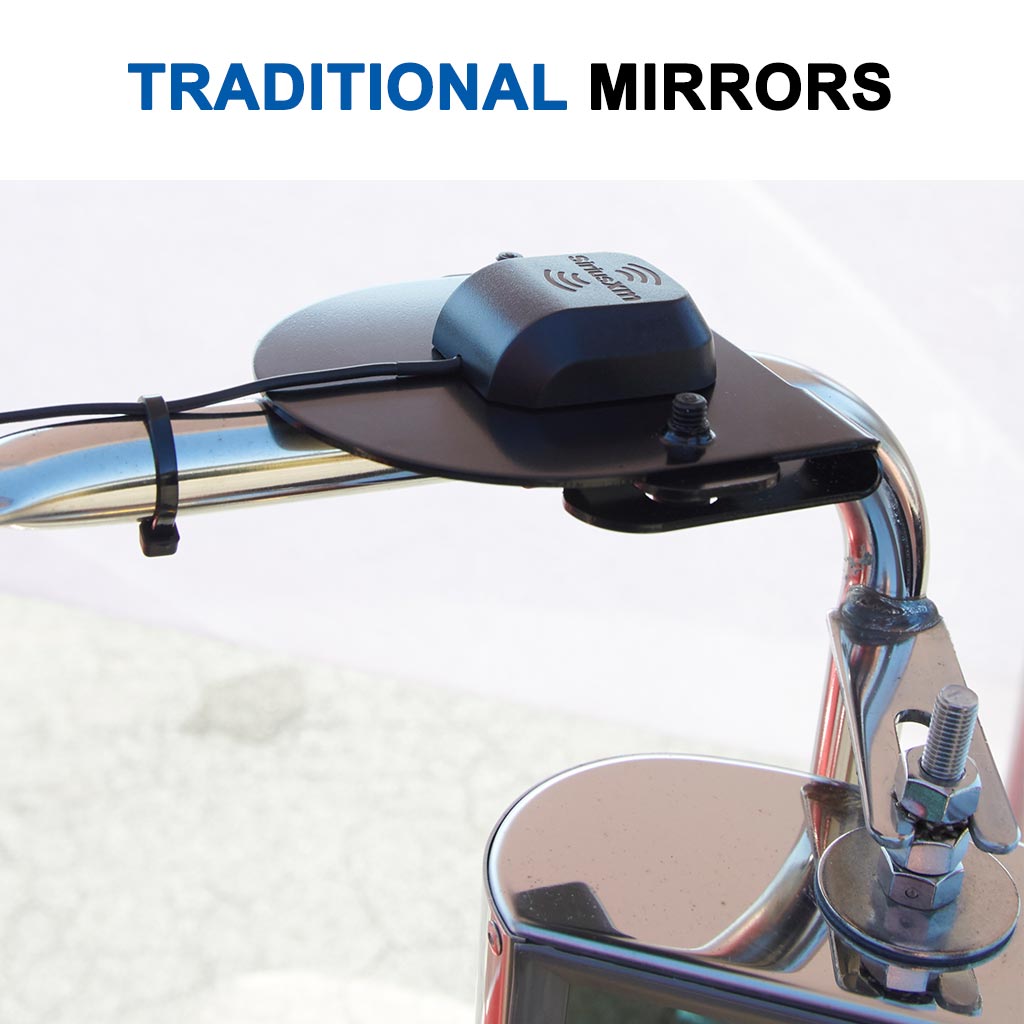

Traditional West Coast mirrors
The mounting plates secure around a compatible mirror arm or support bar without drilling into the truck.
Truck-ready design
A clean, flexible exterior installation

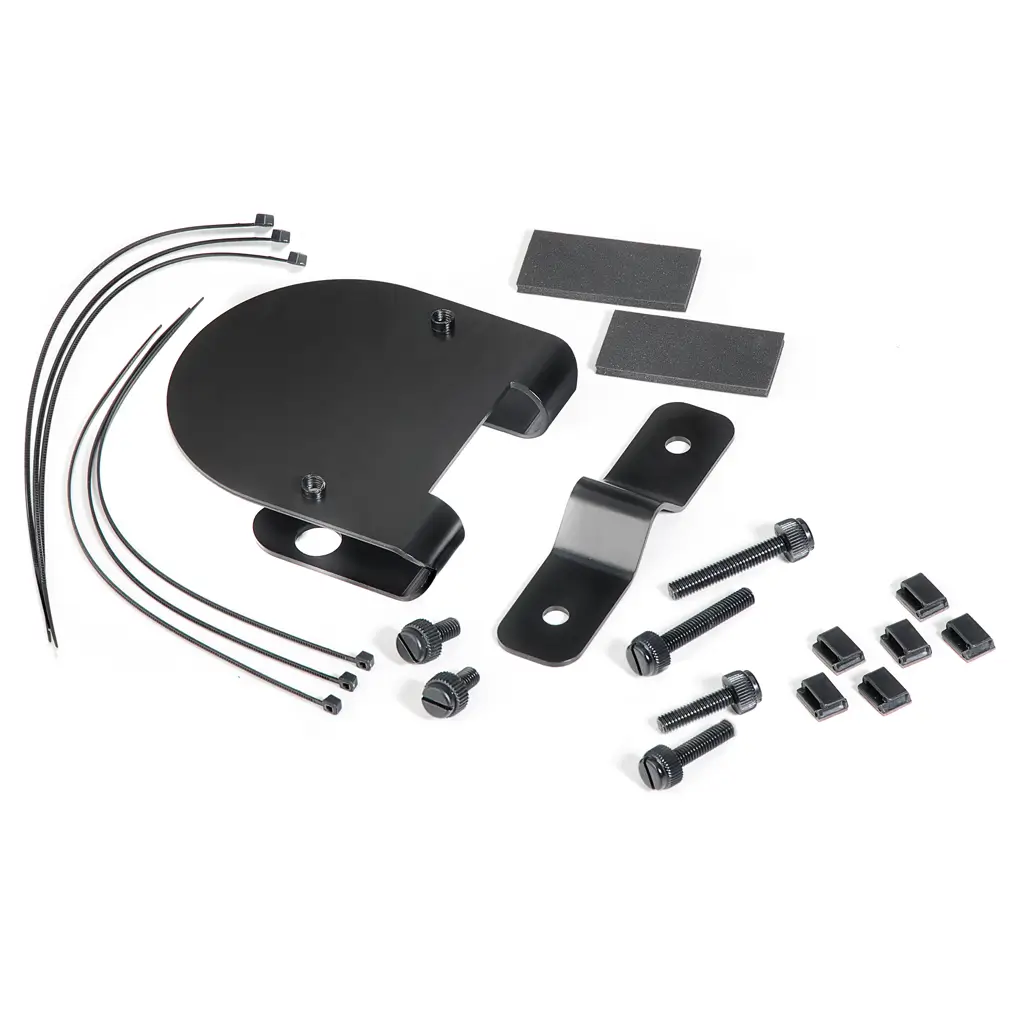

Mounting kit features
Works with all Aero-style and traditional West Coast-style truck mirrors
Creates an exterior metal platform for the magnetic antenna
Installs without drilling into the truck
Rubber pads help protect the mounting surface
Multiple screw lengths accommodate different installations
Included cable ties and clips help organize the antenna cable

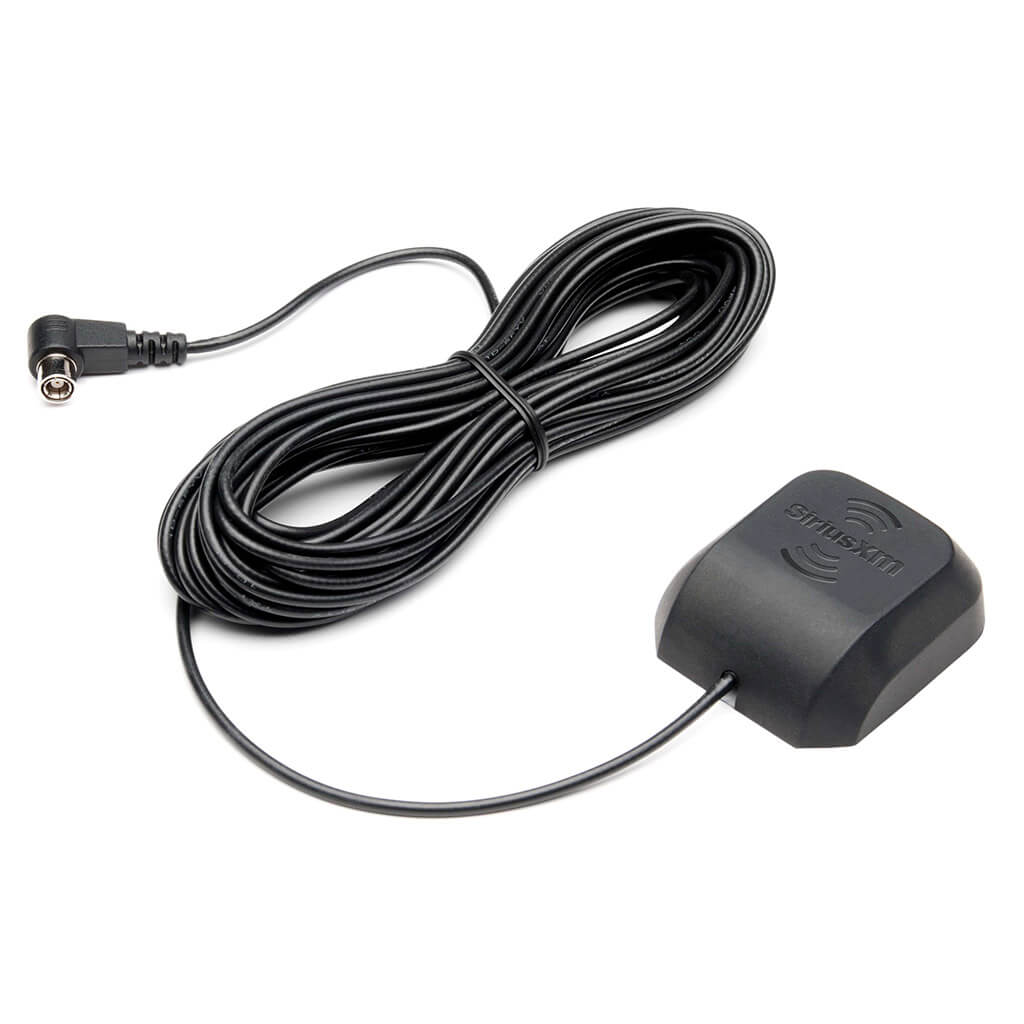

NGVA3 antenna features

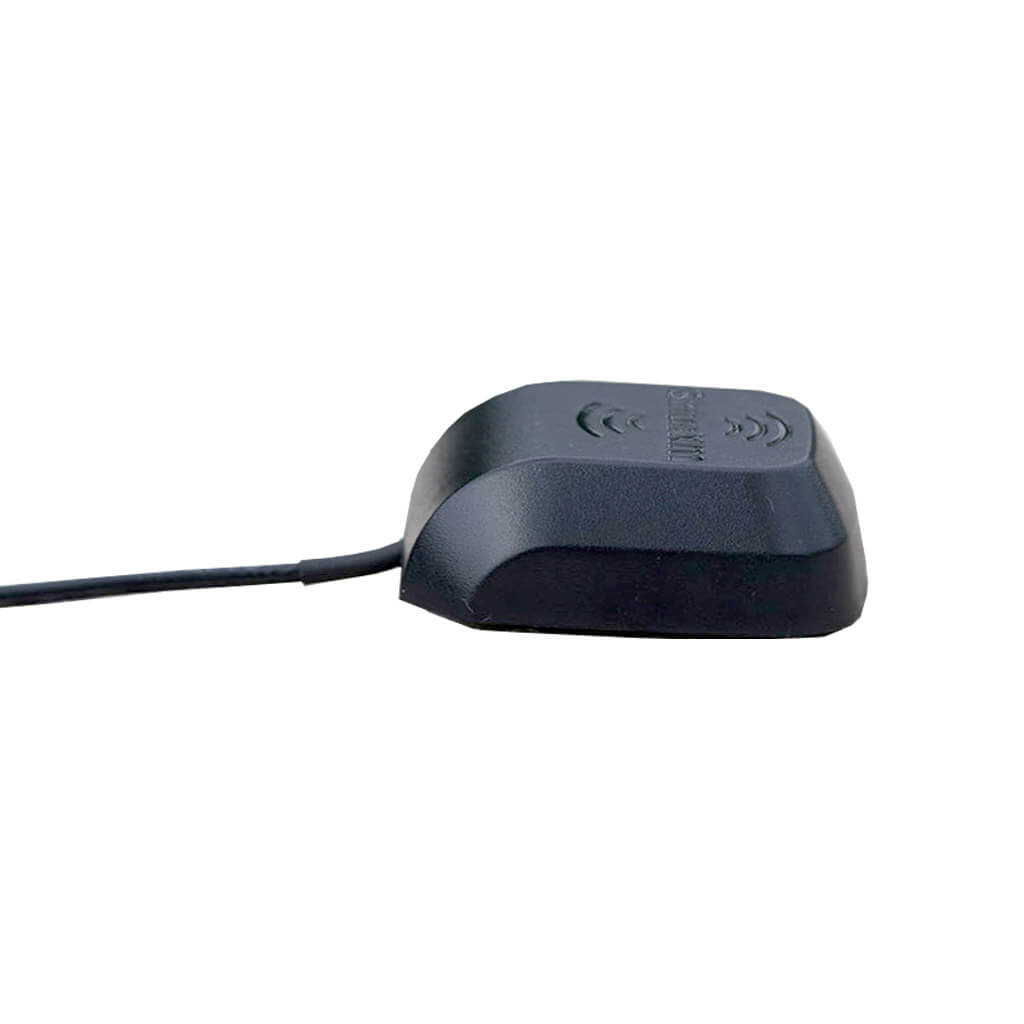

Official SiriusXM magnetic-mount vehicle antenna
Low-profile housing for a clean installation
Approximately 23 feet of attached antenna cable

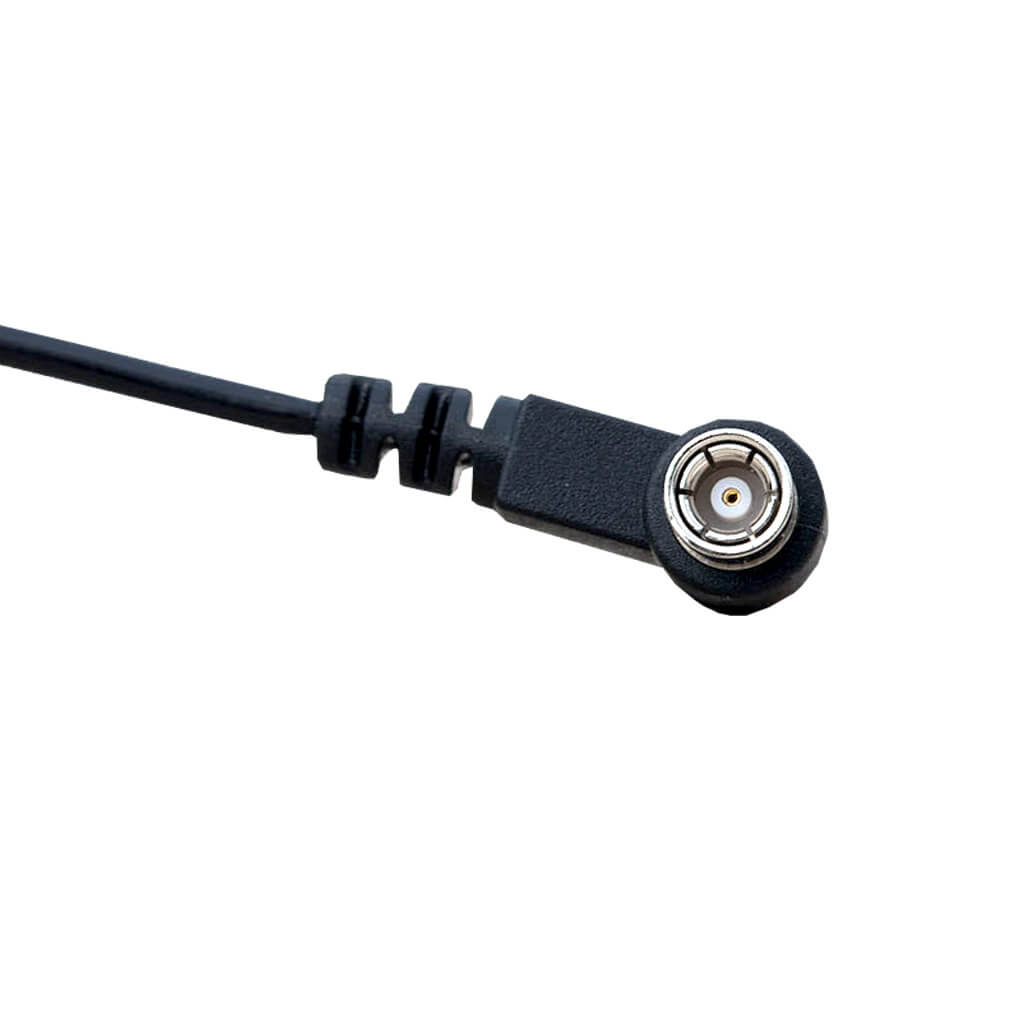

Right-angle standard SMB female connector
Compatible with Sirius, XM and SiriusXM receivers using a standard SMB antenna port
Rubber feet help protect the mounting plate
Compatibility
Check your antenna connection
Works with standard SMB ports
Compatible with Sirius, XM and SiriusXM receivers that accept a standard push-on SMB antenna plug without a pink, yellow or green plastic FAKRA housing.
Factory-radio note
This antenna cannot connect directly to factory-installed systems that combine satellite radio with GPS or navigation through a single antenna lead. A vehicle-specific adapter may be required.

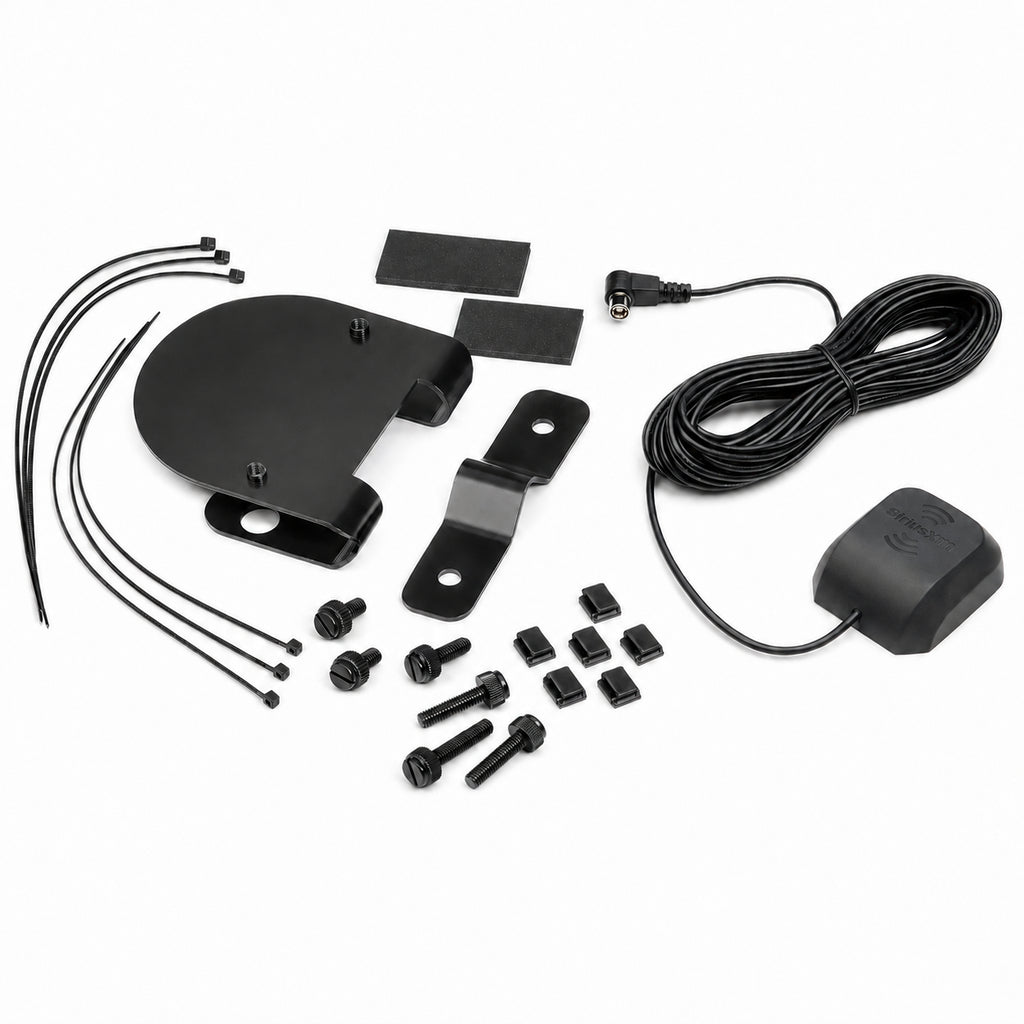

Everything in the box
Package includes
NGVA3 magnetic SiriusXM antenna with attached 23-foot cable
Universal top mirror-mount plate
Bottom mirror-mount bracket
Three sets of nylon thumb screws
Protective rubber pads
Antenna cable clips
Cable ties
Mounting hardware
Product information
NGVA3 antenna specifications
Antenna type
SiriusXM magnetic-mount vehicle antenna
Connector
SMB female, right angle
Cable length
Approximately 23 ft (7.0 m)
Antenna weight
Approximately 4 oz
Supported mirrors
Aero-style and traditional West Coast truck mirrors
Installation
Exterior mirror mount; no drilling required on compatible installations
Trucker tip
Not sure whether your radio is compatible?
If your truck has an antenna connector on the dash or a colored round or square plastic housing around the antenna port, contact us before ordering. Send a clear photo of the connector and our team can help identify the correct antenna or adapter.
